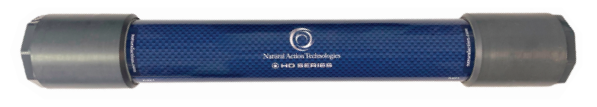

Whole Home Revitalizer
Installation Instructions
A certified plumber is required for installation
Installation Steps
The Whole Home Revitalizer is fitted with 1-inch NPT threads. If the existing plumbing differs, ensure the installer provides the appropriate reducer or adapter before installation.
The Whole Home Revitalizer may be installed in either direction, vertically or horizontally. Ensure the piping is supported, deburred, and clean.
Install the Whole Home Revitalizer in-line after the water meter, after any filtration, and before the water heater whenever practical. Do not expose the unit to direct sunlight, as this could shorten its service life and potentially void the warranty. If the unit is installed in an area prone to freezing, wrap it with heat tape.
Install adapter fittings as needed. We recommend MEGATAPE® Brand Grey Kevlar PTFE Tape, wrapped 3–5 times, with a small amount of non-hardening sealer applied over the top of the tape. (We prefer MEGALOC® Brand.) Both are widely available.
DO NOT OVERTIGHTEN — If there are any leaks, undo the fittings and repeat the procedure. When done properly, no more than 1/2 to 3/4 turn beyond hand-tight should be required.
- Pressure Limit: 100 PSI
- Temperature Limit: 140°F
- Materials: NSF-61 PVC parts, Food Grade HDPE, proprietary Di-Electric media
- Fittings: 1" NPT Female
- Total Install Length: Approximately 25"
- Weight: 5 lbs
Misuse or improper installation may void your warranty or cause subsequent water damage at your own liability.
